Lighting Solutions

Professional LED Systems for Refrigerated Displays

Our advanced 24 VDC LED Lighting Systems are engineered specifically for refrigerated display counters, ensuring maximum product visibility, energy efficiency, and long-term reliability.

Designed with application-specific optics and modular connection systems, our lighting solutions provide uniform illumination across all refrigeration formats.

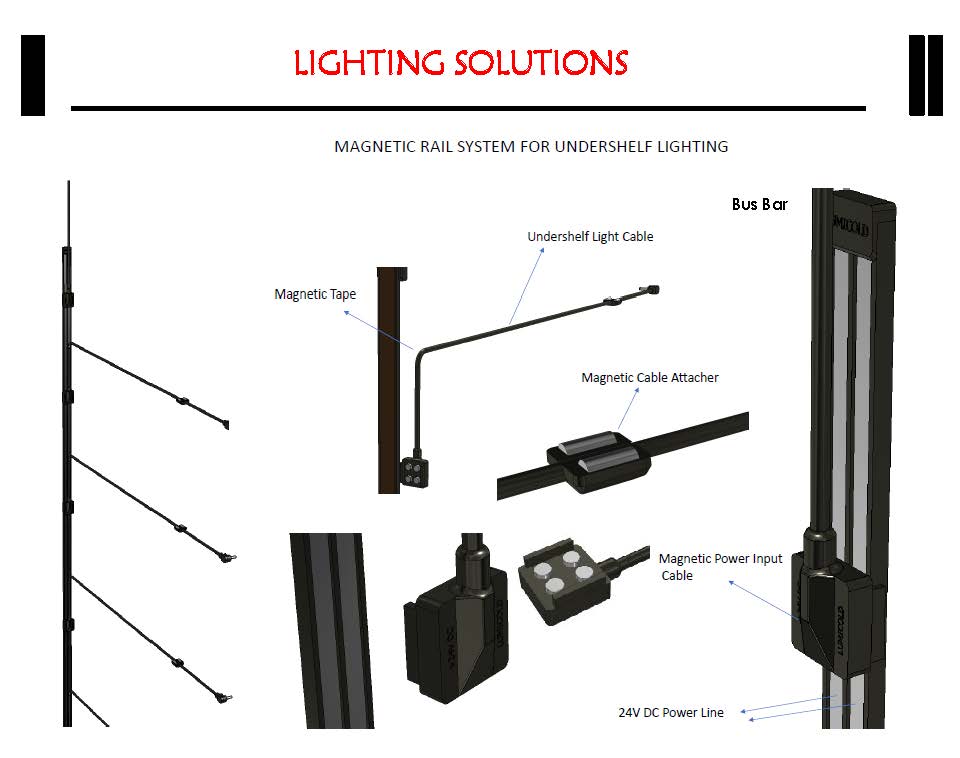

Magnetic Rail System – Under Shelf Lighting

Our magnetic rail system enables quick installation and flexible positioning without complex mechanical fixing.

System Components:

  • Magnetic Tape

  • Undershelf Light Cable

  • Magnetic Cable Attacher

  • Magnetic Power Input Cable

  • 24V DC Power Line

  • Bus Bar Integration

✔ Tool-free installation
✔ Flexible repositioning
✔ Secure magnetic fixation
✔ Clean and modular cable management

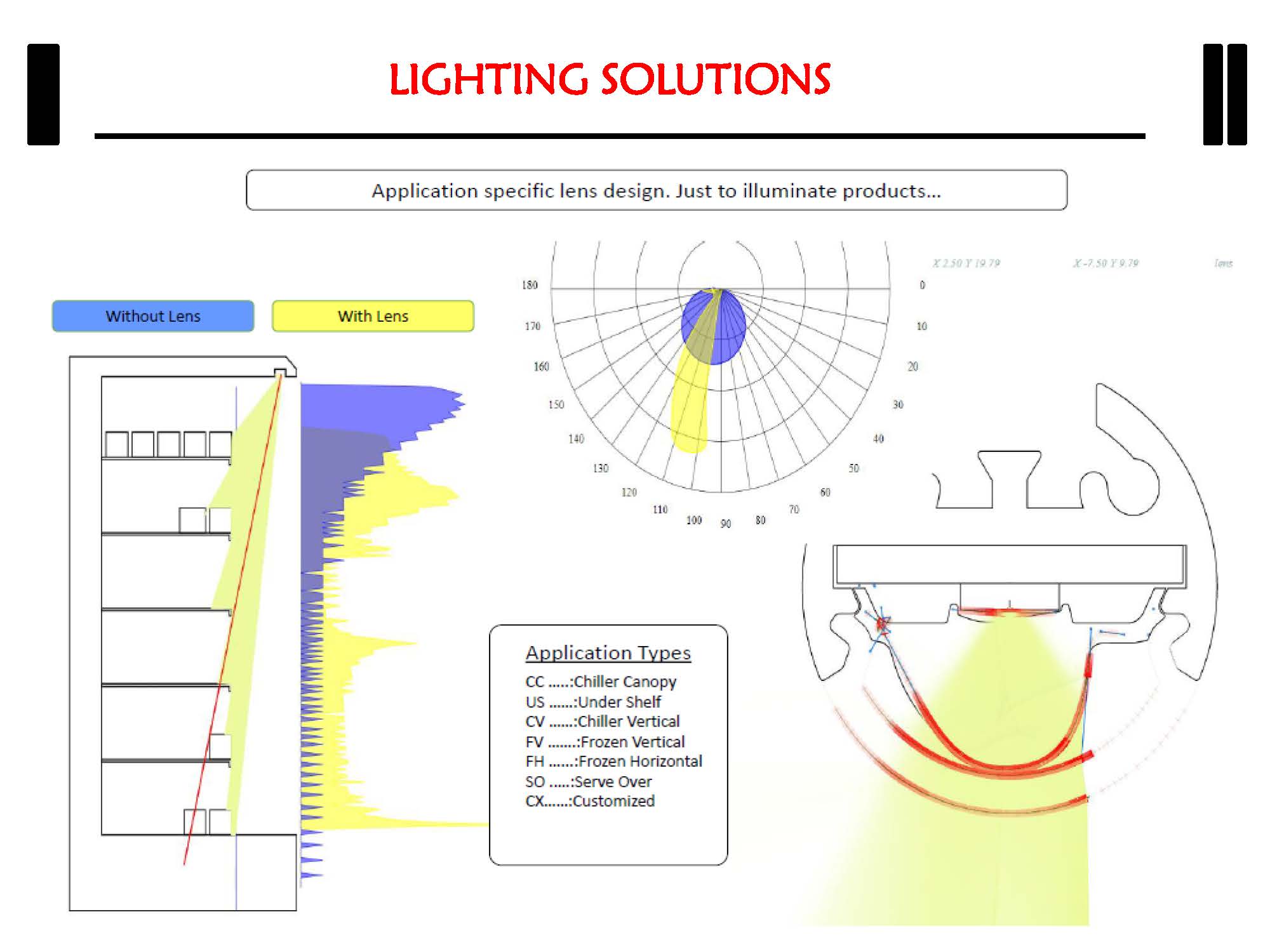

Optical Performance – Application Specific Lens Design

We offer optimized lens configurations to deliver controlled and focused illumination.

With Lens vs Without Lens

  • Enhanced light direction

  • Reduced glare

  • Improved product highlighting

  • Optimized beam angle control

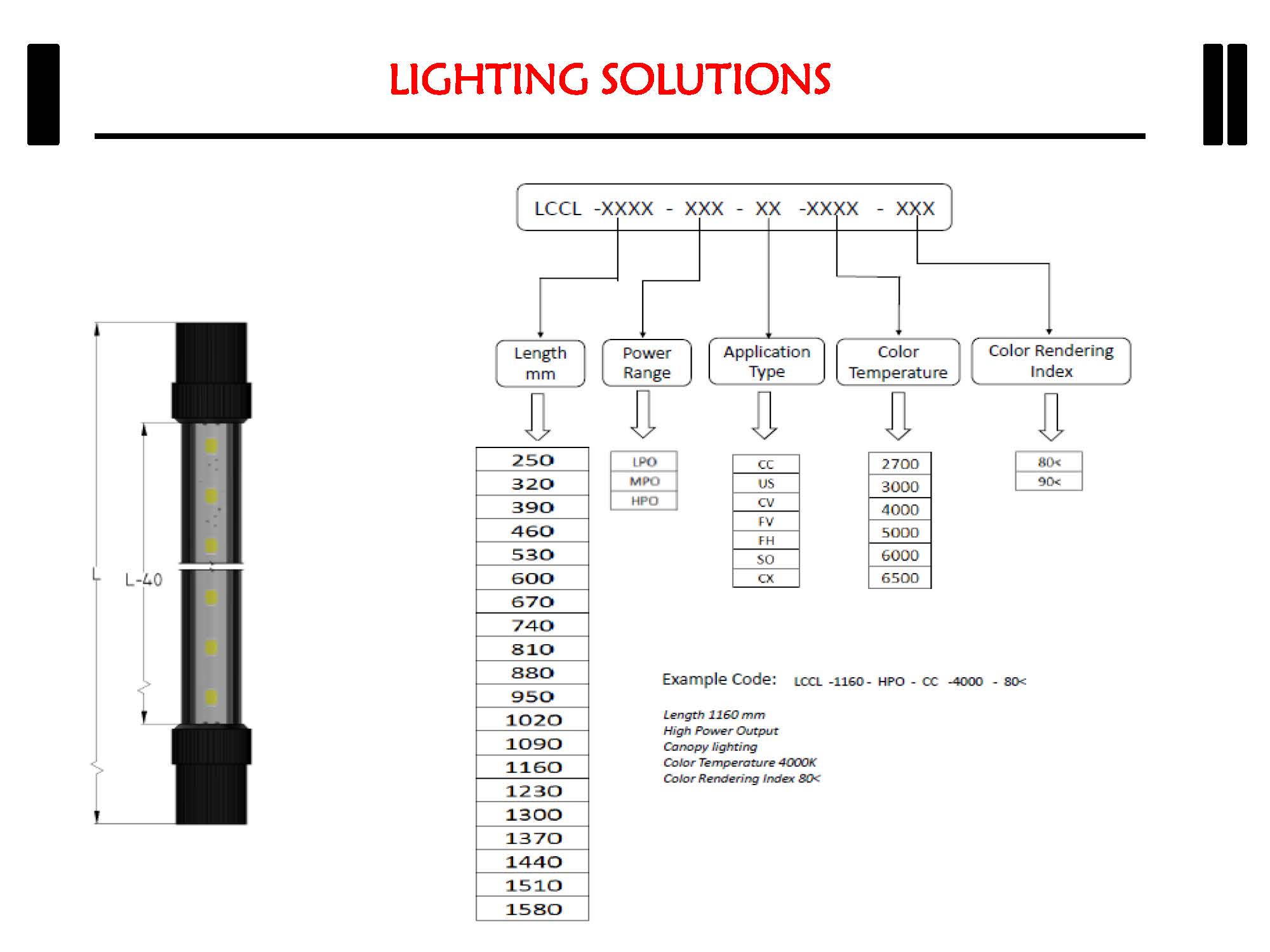

Application Types

  • CC – Chiller Canopy

  • US – Under Shelf

  • CV – Chiller Vertical

  • FV – Frozen Vertical

  • FH – Frozen Horizontal

  • SO – Serve Over

  • CX – Customized

Each application type is engineered with dedicated optical and structural specifications.

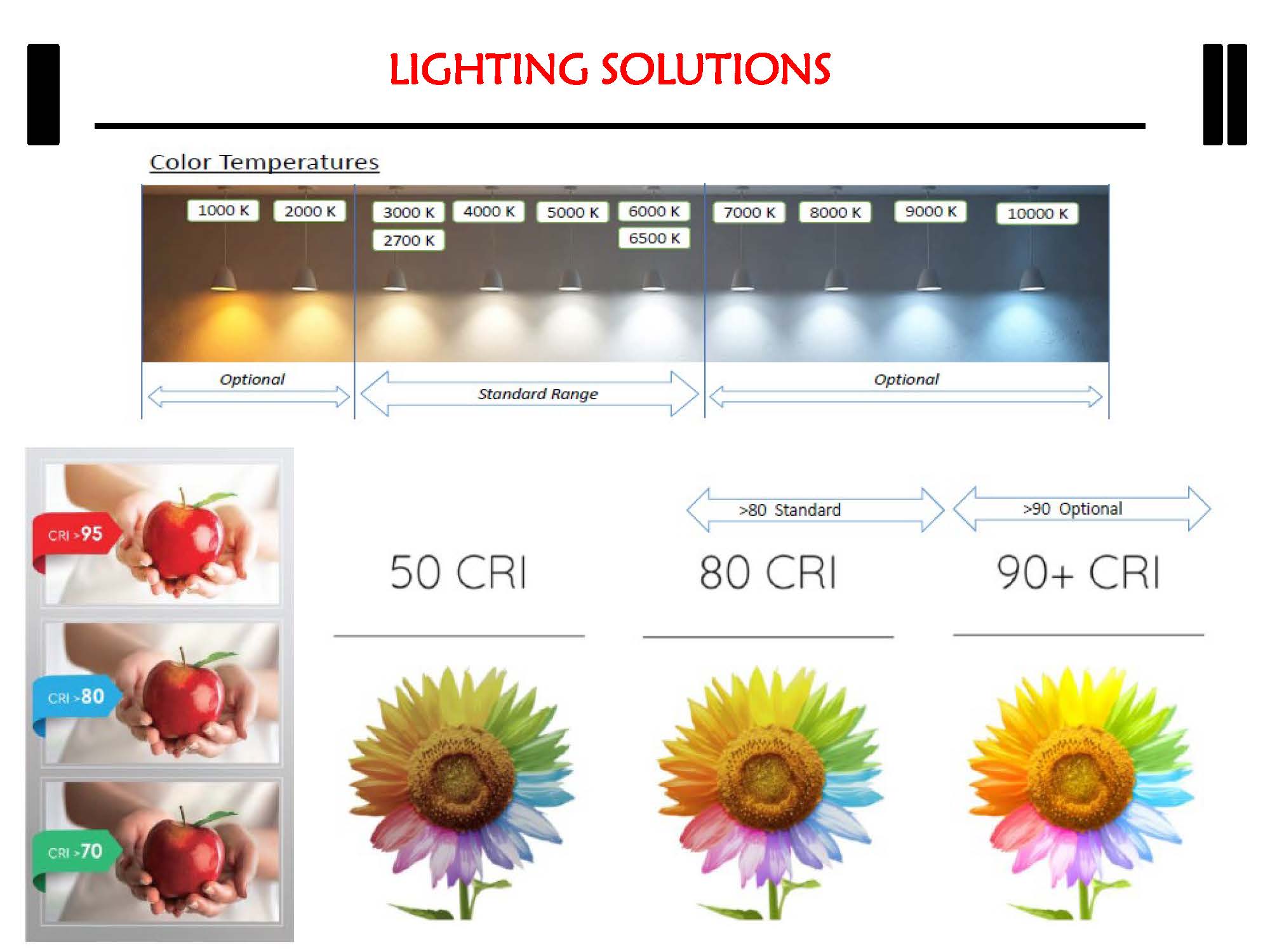

Color Temperature Options

Available color temperatures:

  • 2700K

  • 3000K

  • 4000K

  • 5000K

  • 6000K

  • 6500K

Optional extended range available upon request.

Color Rendering Index (CRI)

  • 80 CRI – Standard

  • 90+ CRI – Optional High-Performance

Higher CRI ensures more accurate and vibrant product color presentation, especially for fresh food displays.

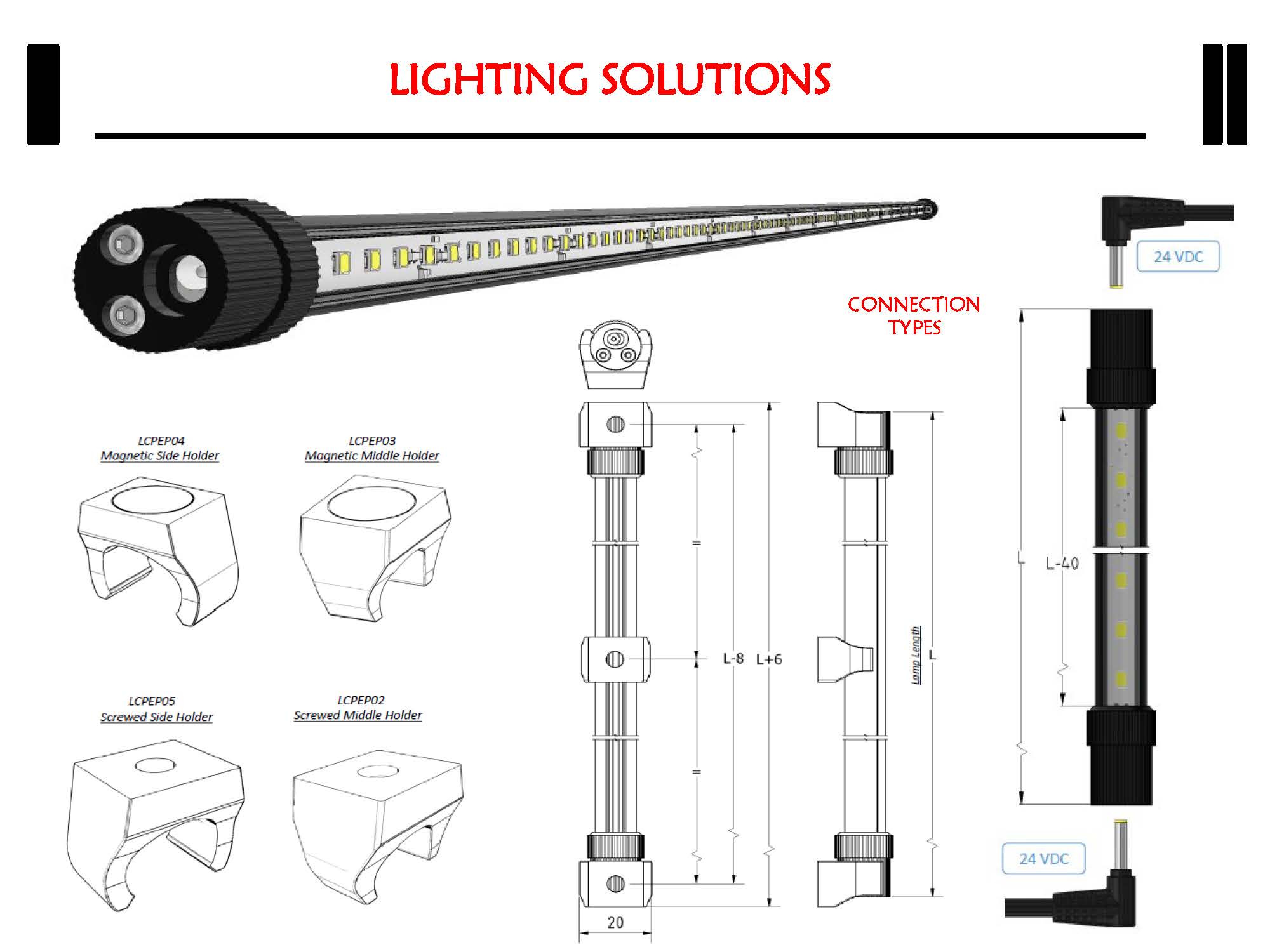

Connection & Mounting Options

  • Magnetic Side Holder

  • Magnetic Middle Holder

  • Screwed Side Holder

  • Screwed Middle Holder

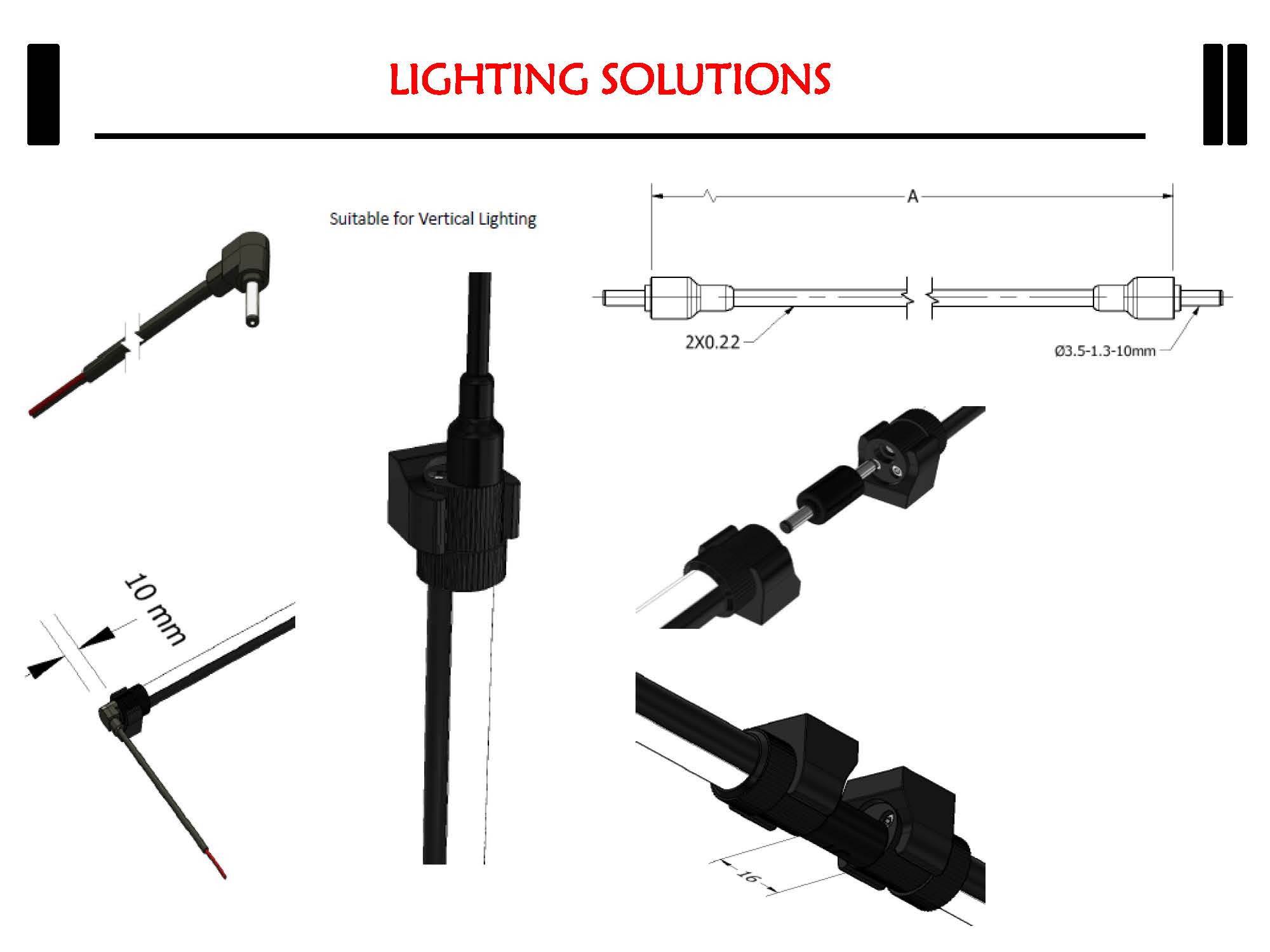

  • 90° DC Connectors

  • Vertical Lighting Connectors

All connectors are designed for secure, moisture-resistant operation in refrigerated environments.

Engineered to Highlight Freshness

Our lighting systems are developed to:

  • Enhance product presentation

  • Improve energy efficiency

  • Reduce maintenance needs

  • Provide long operational lifespan

  • Deliver consistent and uniform light distribution

Your dream , Our Challenge

Creative solutions for refrigerated counters and display units
